| Place of Origin: | Shanghai, China |
|---|---|
| Hàng hiệu: | Daesum |
| Minimum Order Quantity: | 1 |
| machinery capacity: | 40BPH | application: | Beverage, Chemical, Food |
|---|---|---|---|
| packaging type: | Cartons, Barrel, case, Drums | packaging material: | plastic, Metal, Wood, Other |
| automatic grade: | Automatic | driven type: | Electric |
| Voltage: | 380V 50Hz | dimension(l*w*h): | adjustable as per client request |
| warranty: | 1 Year | key selling points: | Automatic |
| filling material: | Other, Oil, Liquid | filling accuracy: | ±0.2FS |
| machinery test report: | Provided | video outgoing-inspection: | Provided |

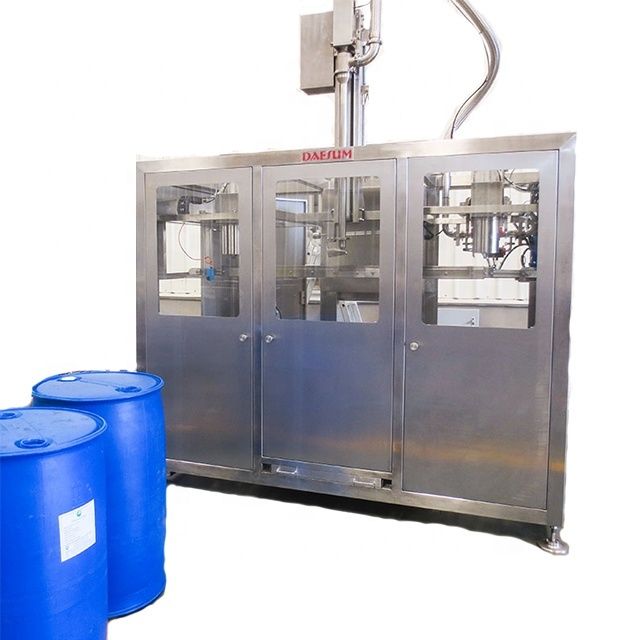

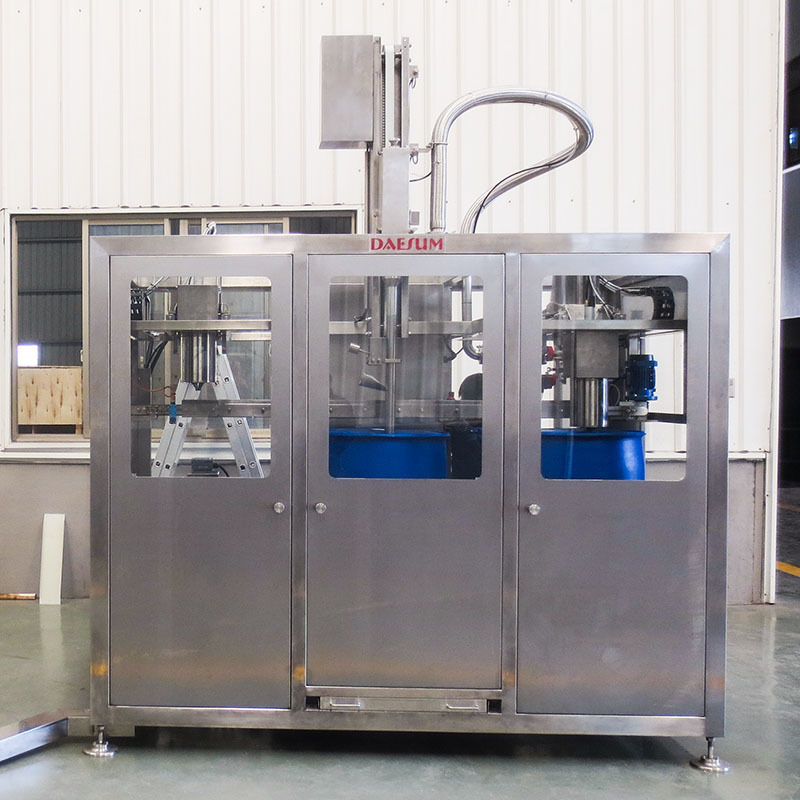

| core components: | motor, Other, PLC, Gear, Bearing, Gearbox, Engine, Filling nozzle | Name: | 200L single head automatic oil liquid drum filling machine |
| Filling capacity: | 50-60 drums/hr | Accuracy: | 0.1-0.2% FS |
| Internal value: | 100g | Ambient temperature: | -10℃~45℃ |
| Maximum weighing capacity: | 300kg | Filling container: | 200L standard drum |
| Filling product: | motor oil/ engine oil/ mobil oil | Filling type: | below-bunghole filling |
| Control method: | auto/semiauto | Type: | Filling Machine |
| Applicable Industries: | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Printing Shops, Construction works , Other | Showroom Location: | None |
| Condition: | New | Marketing Type: | Ordinary Product |
| Warranty of core components: | 1 Year | Weight: | 2000 KG |
| Làm nổi bật: | 200L automatic drum filling machine,one-nozzle car oil filler,mobil oil drum filling equipment |
||
The product contacting pipe and filling valve are made of S304. The filling nozzle uses internal-type metal-sealed bottom valve and compression-type Teflon packing shaft seal, which ensures zero dripping and long endurance. Filling is controlled by two-stage product infeed valve, with fast and slow filling combination valve in the front and manual slow filling adjustment valve, which ensures high filling accuracy.
In addition, the filling machine has a safety interlock system. When the drum is not in the right position or the filling nozzle does not go through the bunghole, the filling valve would not open or start filling; when the filling telescopic pipe touches the drum surface, it would retract automatically.
TRANSCELL stainless steel nitrogen purging sensors are embedded with the weighing platform on the filling stations. UNIPLUS instruments are installed with the control cabinets. The weighing platforms keep low with only 10cm high, which also endure high temperature.
Maximum weighing capacity 300kg
Filling capacity 50-300kg/drum
Division value 100g
Accuracy level 0.2% FS (dynamic)
Working ambient temperature －10℃～45℃
Product supply pressure 0.1—0.3Mpa (stable)
Air supply pressure 0.6—0.7Mpa (clean and dry)
Power supply AC380V, 3 phase, 50Hz
Consumed power about 8kw
Control method auto/ manual operation by adjusting the option switch
Ex-proof level D2BT4
Protection level better than IP55
Filling container 200L standard steel drum
Filling type below-bunghole
Filling product oil/ motor oil/ engine oil/ mobil oil/ lube oil/ lubricant

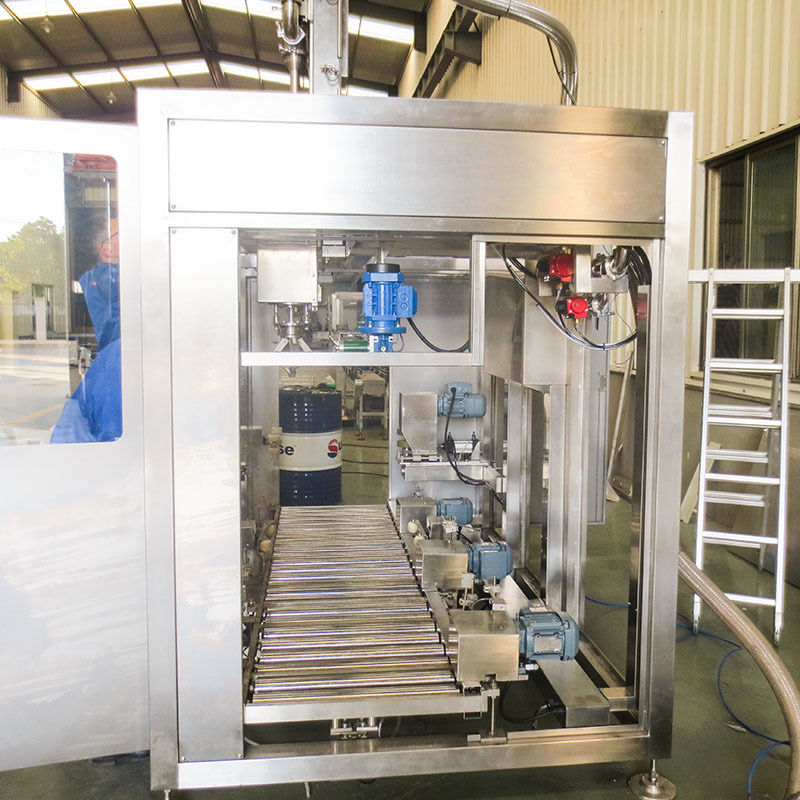

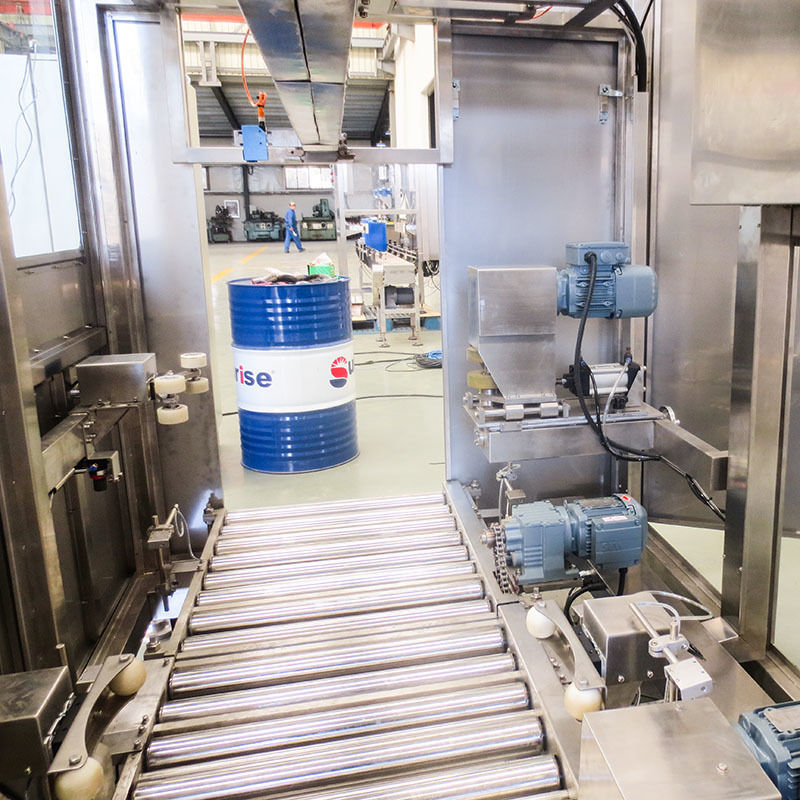

The filling line is assessed with a palletizing system, which facilitates the completed drums discharge. After arriving the palletizing position, the completed drums are snatched up by the pallet gripper two at a time and located on the pallet. When the two subsequent competed drums arrive at the palletizing position, the pallet gripper would go back and repeat the transfer action. The pallet with completed drums would move to the wait-shovel roller way waiting for forklift, in the meanwhile the pallet magazine would release an empty pallet. The pallitizer is operated repeatedly.
Not applicable in this case.
Not applicable in this case.
1. Caltex Shanghai: 1 set of 200L multiple filling nozzle filling line
2. China Donghao Oil: 1 set of 8 filling ports(exchangeable) filling line
3. France Rhodia (zhangjiagang) Pty., Ltd: 2 sets of 200L automatic explosion-proof filling palletizing line.
