| Place of Origin: | Shanghai, China |
|---|---|
| Hàng hiệu: | Daesum |
| Chứng nhận: | ISO9001 |
| Minimum Order Quantity: | 1 |
| machinery capacity: | 160BPH | application: | Beverage, Chemical, Food |
|---|---|---|---|
| packaging type: | Bottles, Barrel | packaging material: | plastic, Metal |
| automatic grade: | Automatic | driven type: | Electric |
| Voltage: | 380V 50Hz | dimension(l*w*h): | adjustable as per client request |
| warranty: | 1 Year | key selling points: | Automatic |
| filling material: | Other, Oil, Juice, Asphalt, Lubricating oil, Acrylic Acid, Industrial Coatings, Paint, Viscous liquid | filling accuracy: | 0.1-0.2% FS |
| machinery test report: | Provided | video outgoing-inspection: | Provided |
| core components: | motor, Other, PLC, Gear, Gearbox, Filler, Roller, Capper | After-sales Service Provided: | Online support, Video technical support, Field installation, commissioning and training, Engineers available to service machinery overseas |
| Application: | MEDICAL/Chemical industry/Oil/Others | Name: | 200L 4 nozzles fully automatic filling machine |
| Filling capacity: | 140-160 drums/hr | Accuracy: | 0.1-0.2% FS |
| Internal value: | 100g | Ambient temperature: | -10℃~55℃ |
| Product type: | Hot product/bitumen/asphalt/others | Filling type: | below-bunghole filling |
| Control method: | auto | Type: | Filling Machine |
| Applicable Industries: | Building Material Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Retail, Food Shop, Printing Shops, Construction works | After Warranty Service: | Video technical support, Online support, Spare parts, Field maintenance and repair service |
| Local Service Location: | None | Showroom Location: | None |
| Condition: | New | Warranty of core components: | 1 Year |
| Weight: | adjustable as per product | Marketing Type: | Hot Product 2020 |
| Làm nổi bật: | 200L drum filling machine,4 nozzle automatic filler,fully automatic drum filler |
||

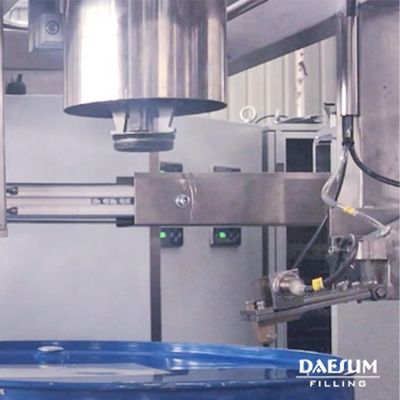

The filling nozzle uses internal-type metal-sealed bottom valve and compression-type graphite packing shaft seal, which ensures zero dripping and high temperature endurance. Besides, the filling nozzle employs casing insulation that could inlet steam or hot oil for heat tracing.
In addition, the filling machine has a safety interlock system. When the drum is not in the right position or the filling nozzle does not go through the bunghole, the filling valve would not open or start filling; when the filling telescopic pipe touches the drum surface, it would retract automatically.
TRANSCELL stainless steel nitrogen purging sensors are embedded with the weighing platform on the filling stations. UNIPLUS instruments are installed with the control cabinets. The weighing platforms keep low with only 10cm high, which also endure high temperature.
Maximum weighing capacity 300kg
Filling capacity 50-300kg/drum
Division value 100g
Accuracy level 0.2% FS (dynamic)
Working ambient temperature -10℃~55℃
Product supply pressure 0.5—1Mpa (stable)
Air supply pressure 0.4—0.6Mpa (clean and dry)
Power supply AC380V, 3 phase, 50Hz
Consumed power about 5kw
Control method auto/ manual operation by adjusting the option switch
Ex-proof level D2BT4
Filling product hot product/ bitumen/ asphalt
Product temperature lower than 270 degree centigrade
Protection level better than IP55
Filling container 200L standard steel drum
Filling type below-bunghole

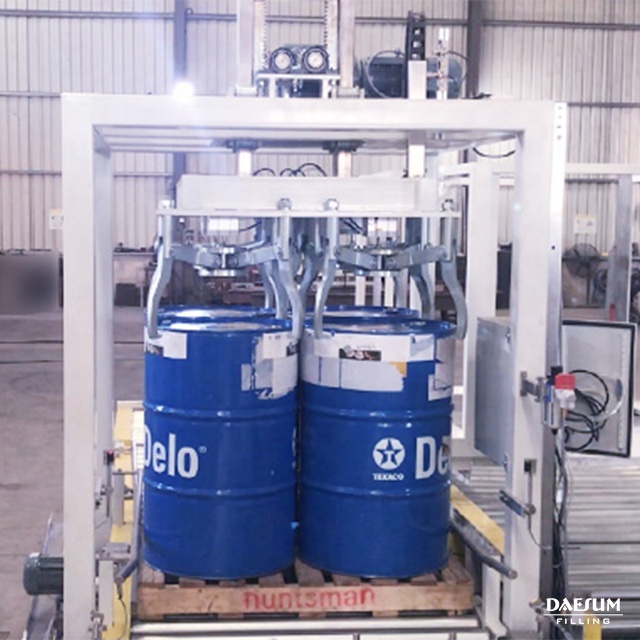

The filling line is assessed with a palletizing system, which facilitates the completed drums discharge. After arriving the palletizing position, the completed drums are snatched up by the pallet gripper two at a time and located on the pallet. When the two subsequent competed drums arrive at the palletizing position, the pallet gripper would go back and repeat the transfer action. The pallet with completed drums would move to the wait-shovel roller way waiting for forklift, in the meanwhile the pallet magazine would release an empty pallet. The pallitizer is operated repeatedly.
Not applicable in this case.
In 2012, DAESUM manufactured and exported 3 high temperature bitumen/asphalt filling lines for Pakistan Parco Company, which helps Parco create billions of value every year. Till now, all the 3 lines are still working in good condition without any machinery and safety matters.
